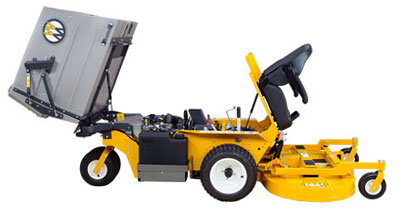

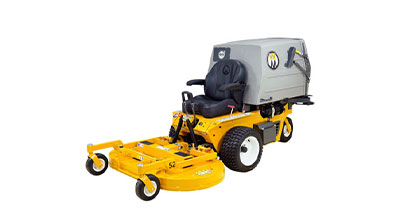

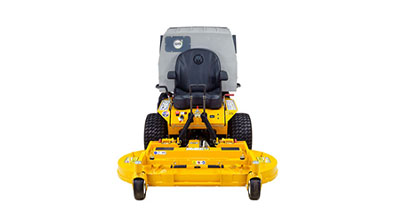

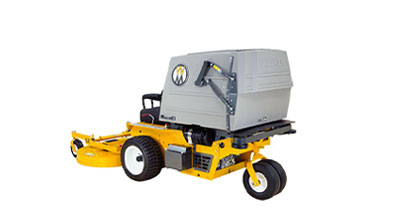

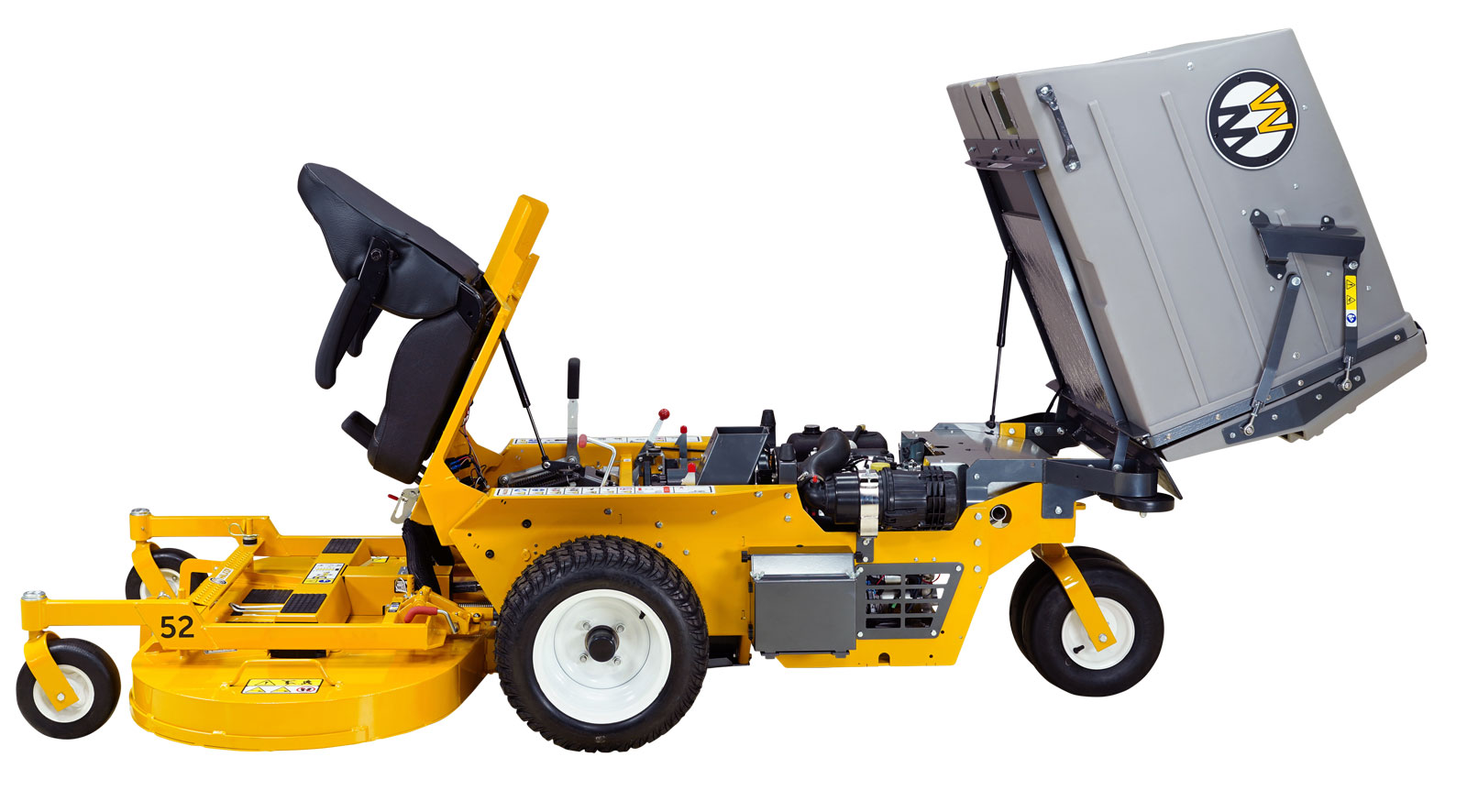

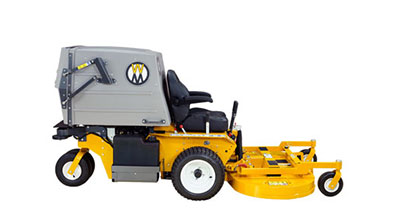

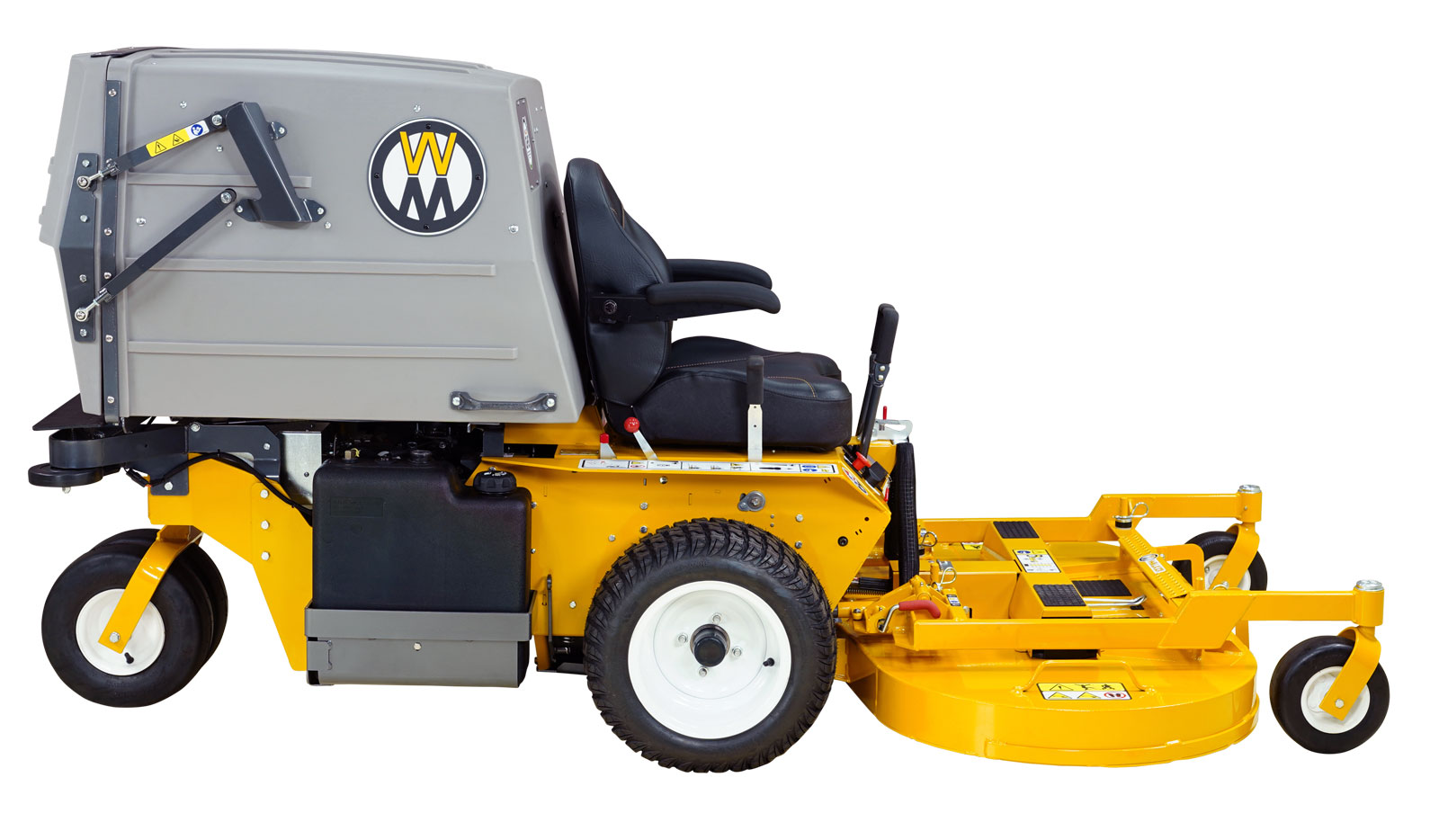

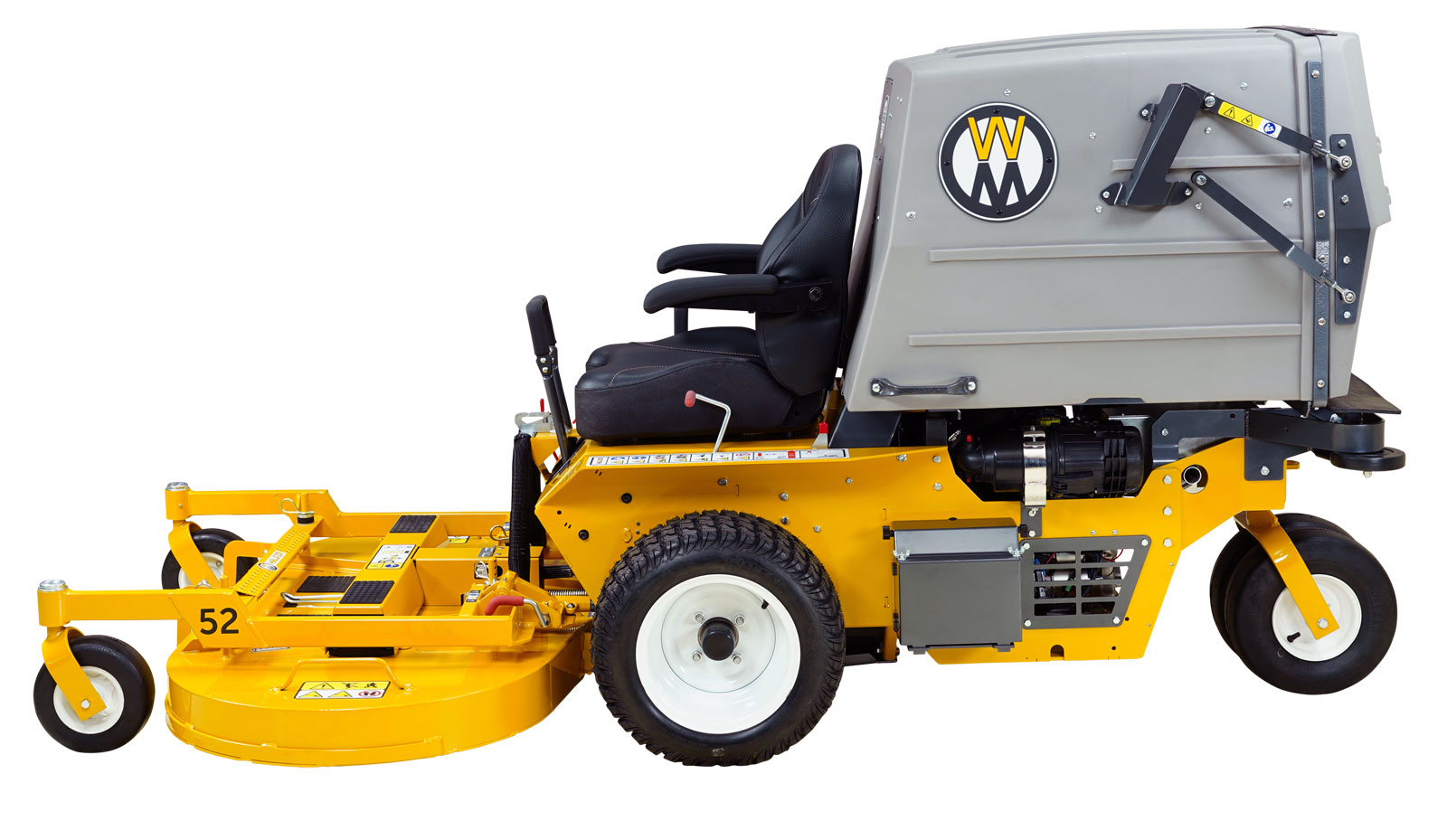

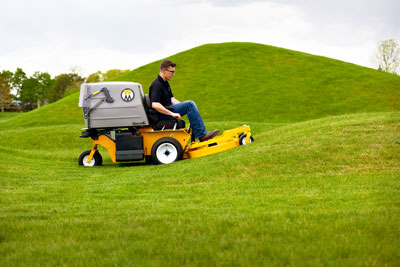

Model C23i

The fastest Walker collection mower







Highlights



Features



C23i Comparison



  C23i C19 T23
Engine Kohler ECH730 Kohler CH620 Kohler CH680
Fuel System EFI Carb Carb
Cooling System Air Air Air
Displacement 747 cc (45.5 cu. in.) cc 674 cc (41.1 cu. in.) cc 674 cc (41.1 cu. in.) cc
Max Power 23 HP @ 3600 RPM 19 HP @ 3600 RPM 22.5 HP @ 3600 RPM
Max Torque 38.1 ft-lbs 35 ft-lbs 36.6 ft-lbs
Fuel Capacity 4.7 gal (17.8 liter) 4 gal (15.1 liter) 4.7 gal (17.8 liter)
Grass Handling Collection Collection Collection
Seat Comfort Seat Standard Seat Comfort Seat
Tires 18 x 8.50-10 Turf Tire 18 x 8.50-10 Turf Tire 18 x 9.50-8 Turf Tire
Weight 780 lbs (354 kg)[1]
999 lbs (453 kg)[3]
762 lbs (346 kg)[1]
953 lbs (432 kg)[3]
820 lbs (372 kg)[1]
1039 lbs (471 kg)[3]

Dimensions 50 in (127 cm)" H x 49.25 in (125 cm)" W x 96.25 in (244.5 cm)" L[3] 47.5 in (121 cm)" H x 49.25 in (125 cm)" W x 981 in (445 cm)" L[3] 50 in (127 cm)" H x 49.25 in (125 cm)" W x 93.25 in (237 cm)" L[3]

[1] Tractor only. [2] Tractor with C42 deck. [3] Tractor with C48 deck.



Warranty

2YEARSentire tractor
2YEARSor 2000 hours on drive system*
3YEARSengine
LEARN MORE *Gear Axle Assembly, Hydrostatic Transmissions for C, D, T and Hydrostatic Transaxles for B, H, S, R and C23i

Video

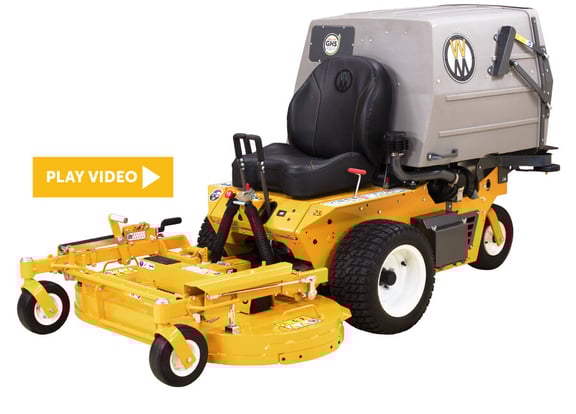

Model C23i - Overview (4:12)



Model C23i - Product Introduction by Ted Walker (6:05)



Model C23i - 2025 Updates (2:03)

Specifications

Engine

Manufacturer: Kohler

Model: Command Pro ECH730, V-Twin, 2 Cyl. (Air Cooled), Electronic Fuel Injection (EFI)

Displacement: 747 cc (45.5 cu. in.)

Max Power: 23 HP @ 3600 RPM

Max Torque: 38.1 ft-lbs

Cooling System: Air

Fuel: Gasoline (unleaded, min 87 octane, max 10% ethanol)

Fuel Capacity: 4.7 gal (17.8 liter)

Electrical

Battery: 12V, 35AH, 340CCA

Charging System: Flywheel Alternator

Charging Output: 20 Amp DC (Regulated)

Transmission

Manufacturer/Model: Dual, Independent Hydro-Gear® ZT3100 Integrated Transaxles

Steering: Hand Lever Control, Individual Wheel

Forward Speed Control: Precision Friction Lock Lever, Cruise Control, with Neutral-Park Position

Parking Brake: Internal Mechanical Cog Lock for each Transaxle (Single Lever Control)

Forward MPH (km/h): 0-8 MPH (0-13 km/h) Infinitely Variable

Neutral: Transaxle Release by Manual Dump Valve

Blade Drive

PTO Shaft: Quick Disconnect Splined Shaft with Two (2) High-Speed U-Joints

Blade Drive Clutch and Brake: Electric Clutch with Brake [Stops Blades within Five (5) Seconds of Disengagement]

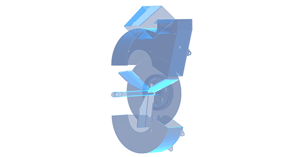

Grass Handling

Blower: 13.25 in. Diameter, Three-Blade Paddle Wheel

Max. Blower RPM: 2900 RPM

Grass Catcher Capacity: 65 Gal / 7.0 Bu / 246 L or 93 Gal / 10.0 Bu / 352 L

Full Signal: Oscillating Vane Switch Mounted on Grass Delivery Spout Triggers Horn Signal

Powerfil®: Oscillating Delivery Spout Driven by 12 Volt Electric Gearmotor Spreads Material throughout Interior of Catcher @ 35 Cycles/Min

Deck

Recommended Cut Width: 42 to 74 in. (106 to 188 cm)

Cutting Height: 1.5 to 4 in. (4 to 10 cm)

Deck Suspension: Independent Torsion-Flex Frame with Caster Wheels and Counterweight Springs

Tires

Drive: 18 x 8.50-10 (Pneumatic 4-Ply, Standard)

Tailwheel: 13 x 5.00-6 (pneumatic 4-ply, standard dual) 13 x 8.00-6 (pneumatic 4-ply, optional single)

Deck Caster: 8 x 3.00-4 Foamed Rubber, All decks except DS52

Size & Weight

LENGTH

  • Tractor Only: 64.5 in (164 cm)
  • Tractor with C48 deck: 96.25 in (244.5 cm)

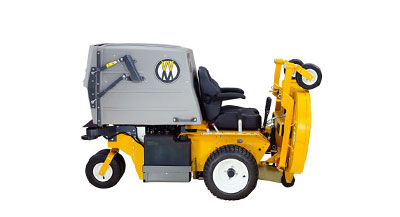

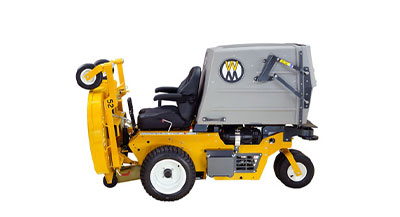

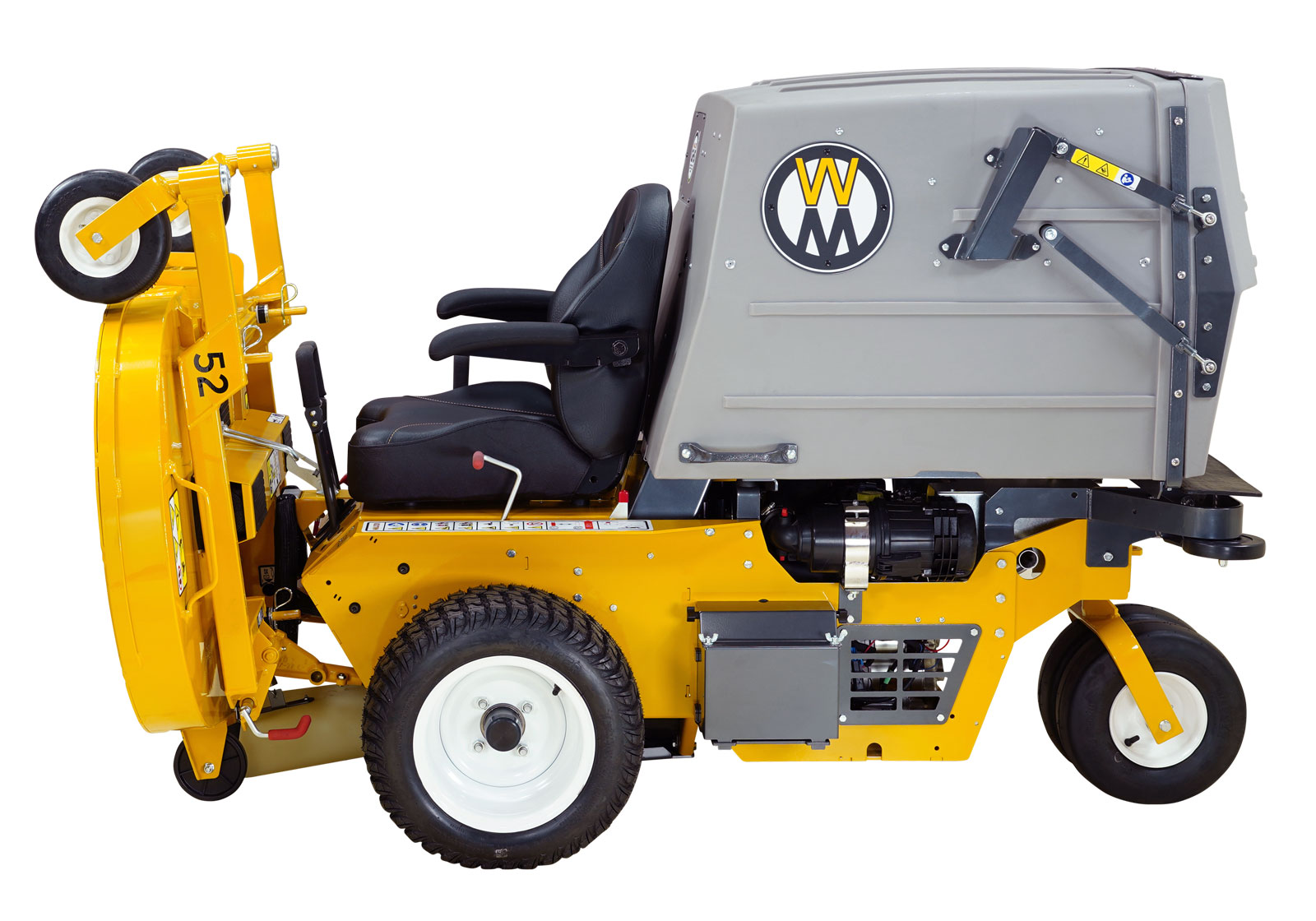

  • Tractor with deck tilted: 77 in (196 cm)
  • Tractor wheel base: 44.50 in (113 cm)

HEIGHT

  • Tractor: 50 in (127 cm)

WIDTH

  • Tractor Only (Outside Tire): 41 in (104 cm)
  • Tractor with C48 deck: 49.25 in (125 cm)

WEIGHT

  • Tractor Only: 780 lbs (354 kg)
  • Tractor with C48 deck: 999 lbs (453 kg)

Downloads

Manuals

Released Class Model Type Model S/N Range Manual P/N Download
11/26/2024 Model-C C23i Operator's 183834 - AND ON 6000-48 PDF
11/14/2024 Model-C C23i Parts 183834 - AND ON 6000-47 PDF
08/13/2024 Model-C C19i Operator's 187255 - AND ON 6000-46 PDF
08/12/2024 Model-C C19 Operator's 187255 - AND ON 6000-45 PDF
04/04/2024 Model-C C19 Parts 187255 - AND ON 6000-43 PDF
03/28/2024 Model-C C19i Parts 187255 - AND ON 6000-44 PDF
02/22/2024 Model-C C19 Parts 181152 - 187254 6000-41 PDF
02/22/2024 Model-C C19i Parts 181152 - 187254 6000-42 PDF
06/15/2023 Model-C C23i Parts 181528 - 183833 6000-35 PDF
05/17/2023 Model-C C23i Operator's 181528 - 183833 6000-36 PDF
02/09/2023 Model-C C19 Operator's 170773 - 187254 6000-40 PDF
02/07/2023 Model-C C19 Parts 170773 - 181151 6000-39 PDF
01/25/2023 Model-C C19i Operator's 170773 - 187254 6000-38 PDF
01/23/2023 Model-C C19i Parts 170773 - 181151 6000-37 PDF
06/01/2021 Model-C C19 Operator's 168757 - 170772 6000-31 PDF
06/01/2021 Model-C C19i Operator's 168631 - 170772 6000-33 PDF
05/18/2021 Model-C C19 Parts 168757 - 170772 6000-32 PDF
05/18/2021 Model-C C19i Parts 168631 - 170772 6000-34 PDF
08/27/2020 Model-C C19i Operator's 159344 - 168630 6000-28 PDF
07/01/2020 Model-C C19 Operator's 159266 - 168756 6000-27 PDF
06/22/2020 Model-C C19 Parts 151990 - 168756 6000-29 PDF
06/16/2020 Model-C C19i Parts 154995 - 168630 6000-30 PDF
05/16/2019 Model-C C19 Operator's 154743 - 159265 6000-26 PDF
05/16/2019 Model-C C19i Operator's 154995 - 159343 6000-25 PDF
05/08/2018 Model-C C19 Parts 147167 - 151989 6000-24 PDF
04/12/2018 Model-C C19i Parts 147791 - 154994 6000-23 PDF
10/17/2017 Model-C C19 Operator's 140307 - 154742 6000-21 PDF
10/11/2017 Model-C C19i Operator's 134494 - 154994 6000-22 PDF
05/05/2016 Model-C C19 Parts 140307 - 147166 6000-20 PDF
09/11/2015 Model-C C19i Operator's 131154 - 134493 6000-19 PDF
05/20/2015 Model-C C19i Parts 134498 - 147790 6000-18 PDF
11/25/2013 Model-C C19 Operator's 125718 - 140306 6000-16 PDF
11/25/2013 Model-C C19 Parts 125718 - 140306 6000-17 PDF
06/15/2010 Model-C MC Parts 100982 - 125717 6000-14 PDF
01/15/2010 Model-C MC Operator's 100982 - 125717 6000-15 PDF
03/01/2007 Model-C MC Operator's 85835 - 100981 6000-13 PDF
09/01/2006 Model-C MC Parts 85835 - 100981 6000-12 PDF
11/01/2004 Model-C MC Parts 66220 - 85834 6000-10 PDF
06/17/2004 Model-C MC Operator's 65903 - 85834 6000-11 PDF
11/01/2003 Model-C MC Parts 60467 - 66219 6000-9 PDF
04/15/2003 Model-C MC Operator's 61061 - 65902 6000-8 PDF
12/01/2000 Model-C MC Parts 49733 - 60466 6000-6 PDF
03/08/1999 Model-C MC Operator's 31040 - 61060 6000-1 PDF
11/05/1997 Model-C MC Parts 31040 - 49732 6000-5 PDF
02/07/1997 Model-C MC Parts 08613 - 31039 6000-2 PDF
12/01/1995 Model-C MC Parts 00000 - 20380 5895-1 PDF
07/01/1991 Model-C MC Operator's 00000 - 20380 5895 PDF
