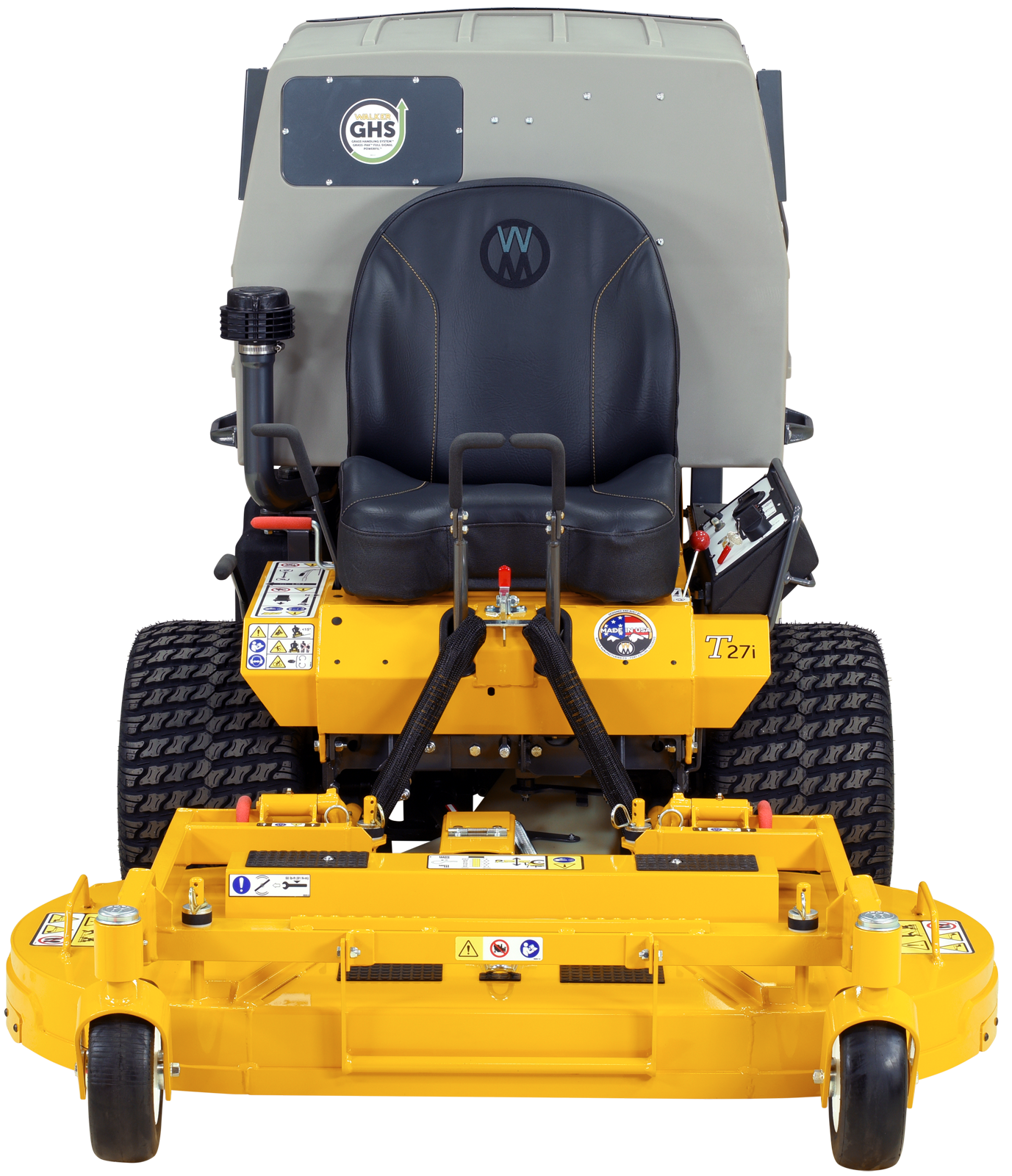

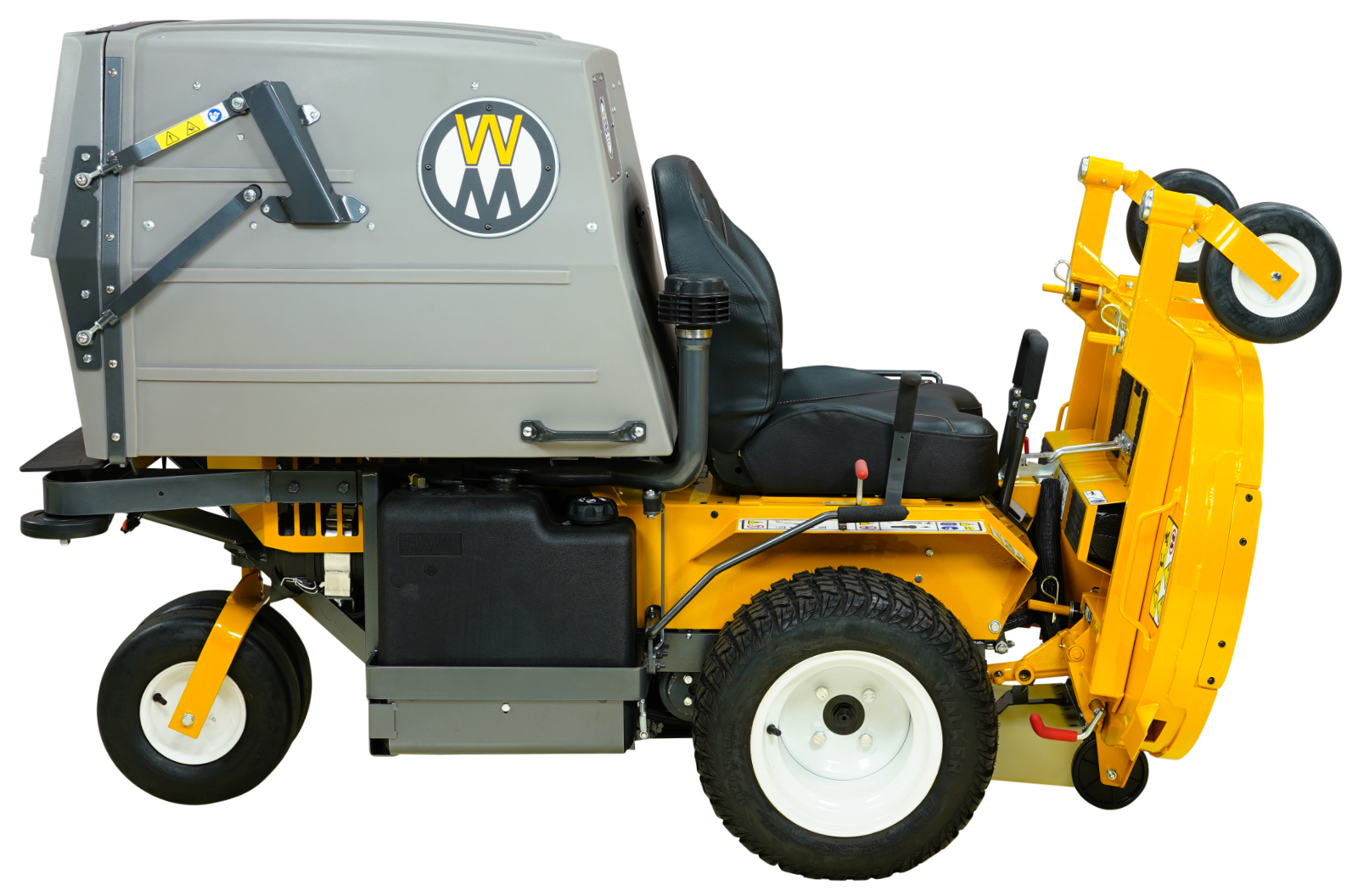

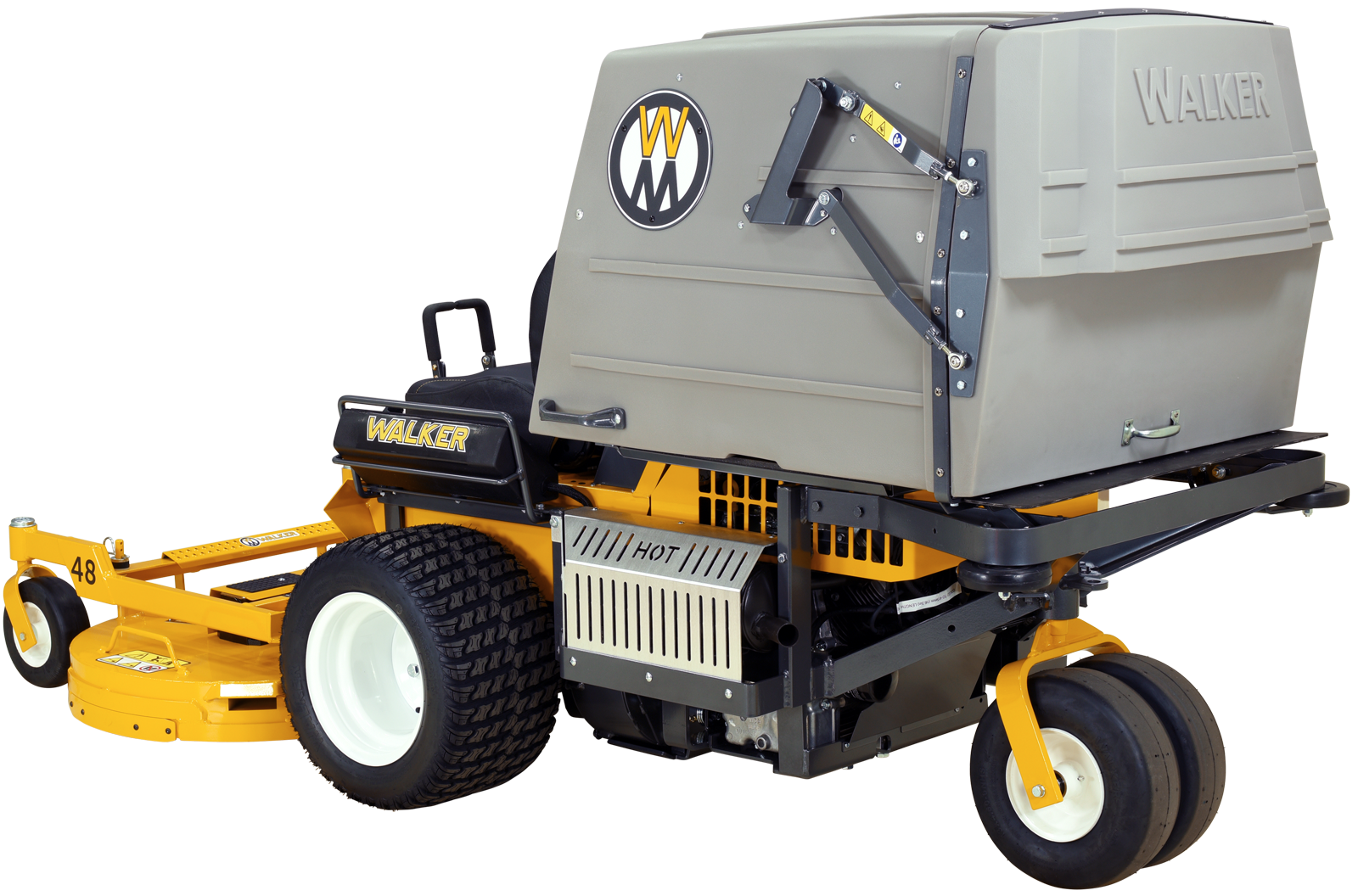

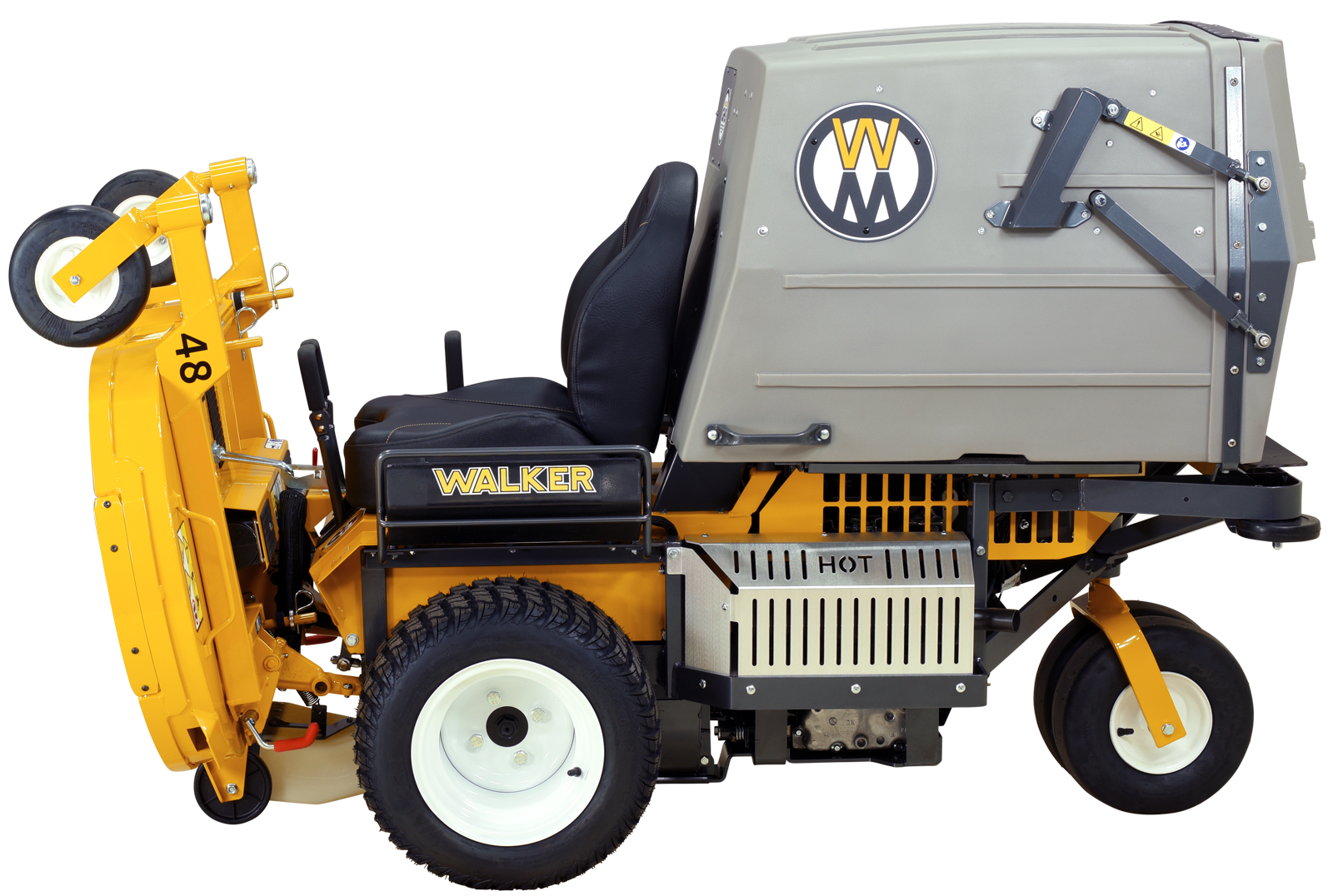

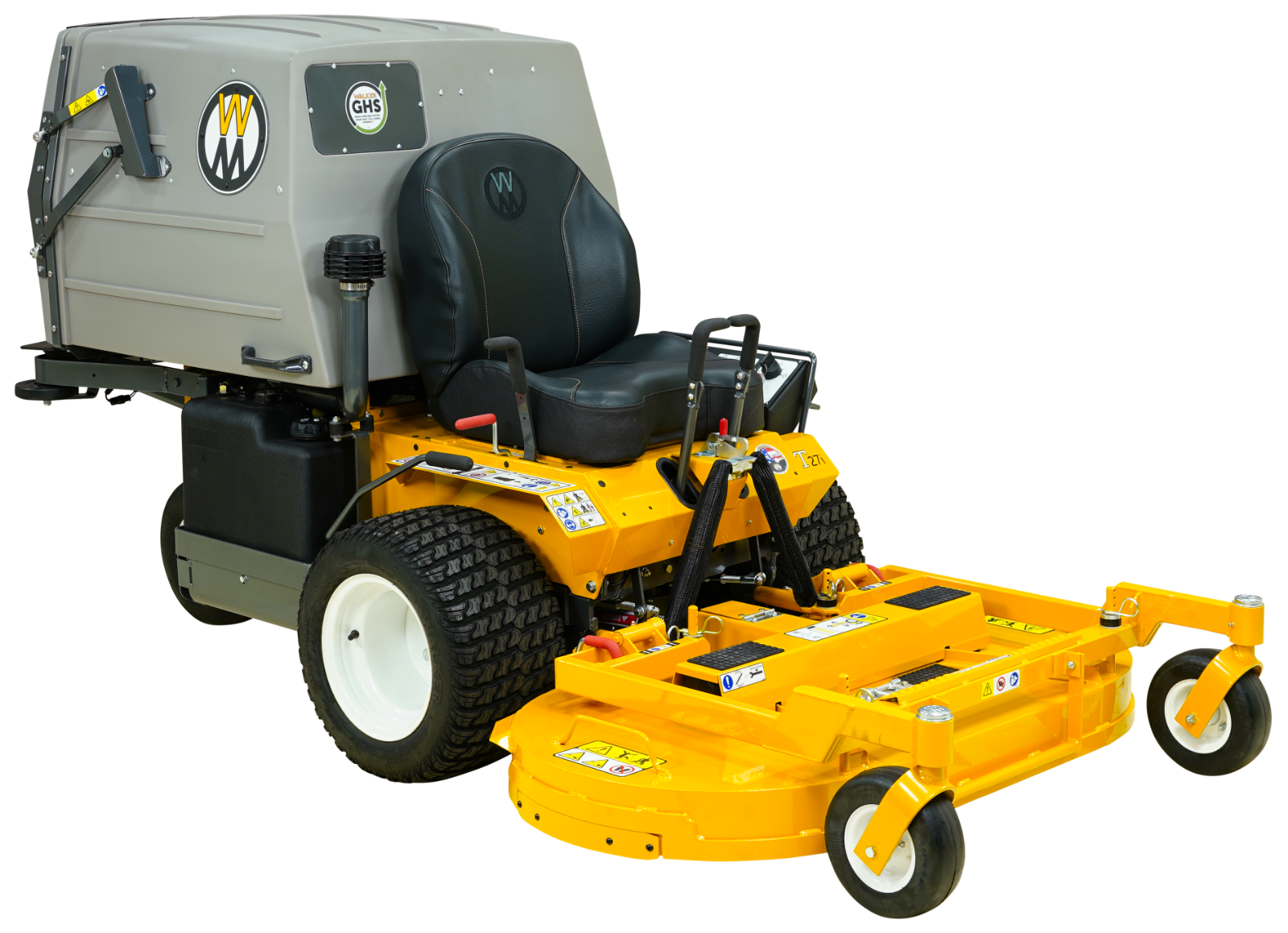

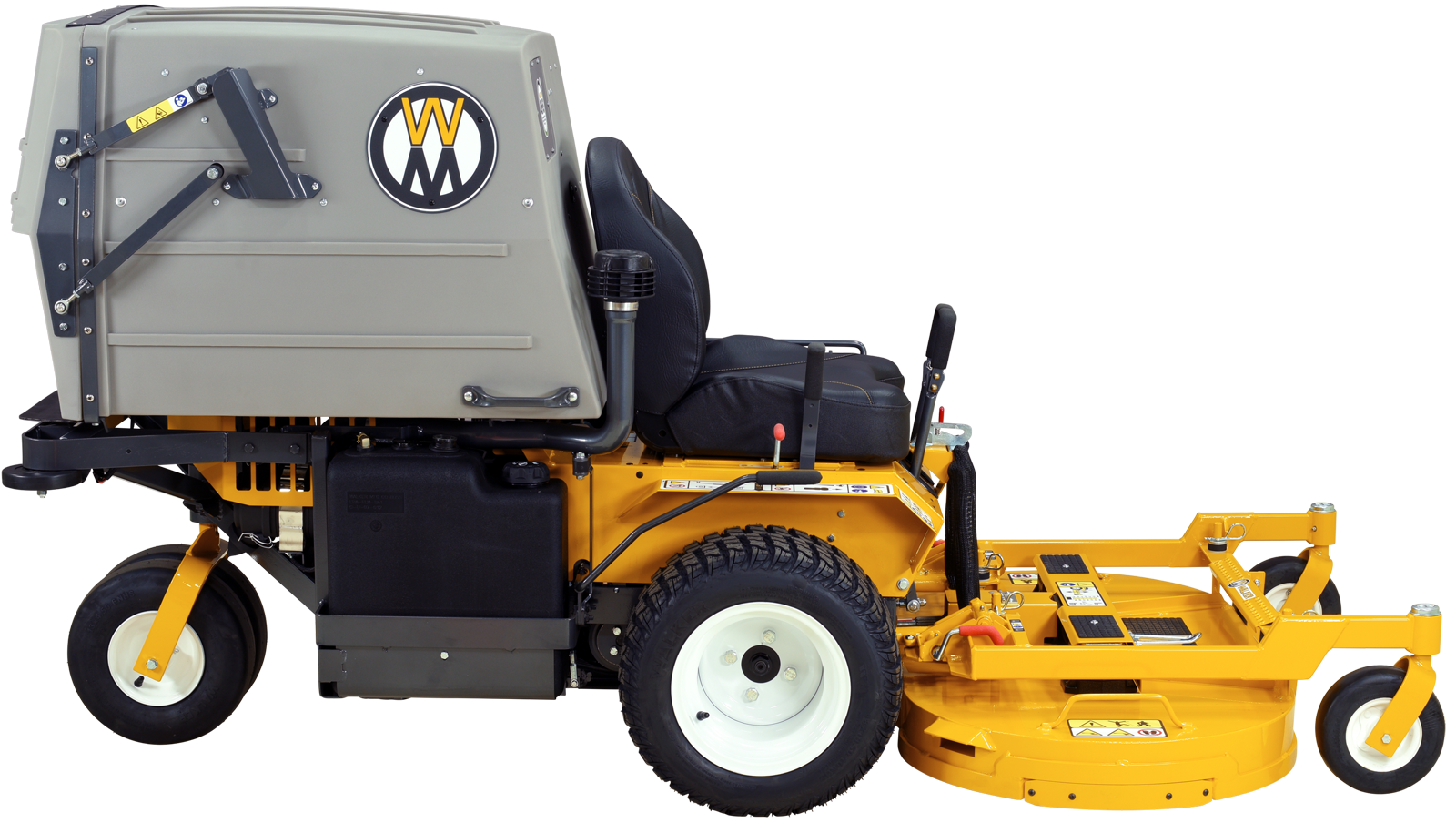

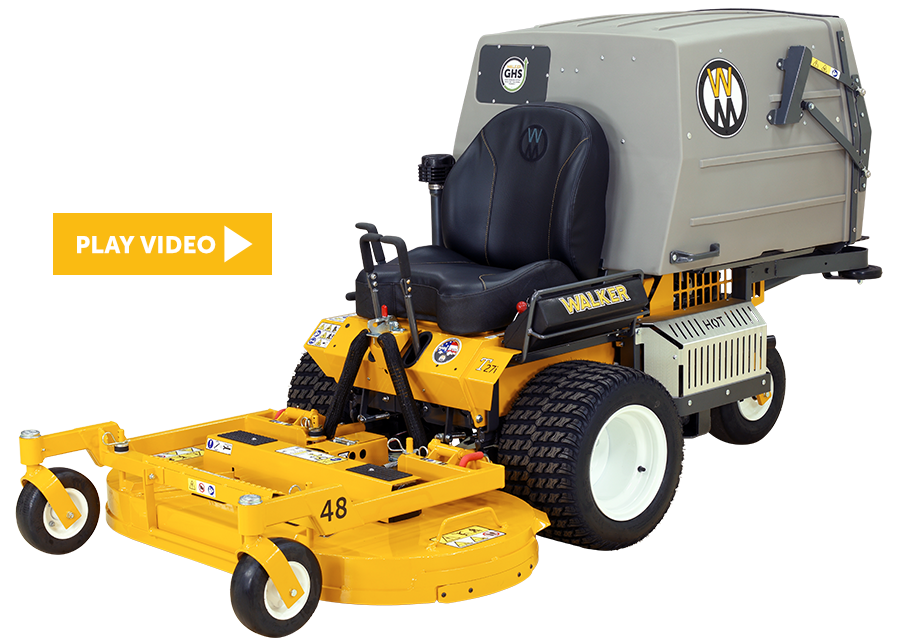

A powerful air-cooled engine with EFI technology delivers a responsive, fuel efficient performance. This mower provides powerful acceleration and throttle response. Built-in diagnostics and service light on the instrument panel simplify troubleshooting.
Type: Collection
Power: 26.5 HP
Engine: Kohler EFI
Ideal Application:
Commercial Properties, Multi-Unit Complexes
Key Attributes: Compact, Agile, Versatile
Decks:
Popular Add-ons:
Implement Hitch
48” Dozer Blade
Two-Stage Snowblower
Hi-Dump
 |
 |
|
|---|---|---|
| Engine | Kohler CH680 | Kohler ECH749 |
| Fuel System | Carb | EFI |
| Cooling System | Air | Air |
| Displacement | 674 cc (41.1 cu. in.) | 747 cc (45.6 cu. in.) |
| Max Power | 22.5 HP @ 3600 RPM | 26.5 HP @ 3600 RPM |
| Max Torque | 36.6 ft-lbs | 40 ft-lbs |
| Fuel Capacity | 4.7 gal (17.8 liter) | 4.7 gal (17.8 liter) |
| Seat | Comfort Seat | Comfort Seat |
| Weight | 820 lbs (372 kg)[1] 1039 lbs (471 kg)[2] |
815 lbs (370 kg)[1] 1034 lbs (469 kg)[2] |
| Dimensions | 50 in (127 cm)" H x 49.25 in (125 cm)" W x 93.25 in (237 cm)" L[2] | 50 in (127 cm)" H x 49.25 in (125 cm)" W x 93 in (236 cm)" L[2] |
[1] Tractor only. [2] Tractor with C48 deck.
Manufacturer: Kohler
Model: Command Pro® ECH749
Displacement: 747 cc (45.6 cu. in.)
Max Power: 26.5 HP @ 3600 RPM
Max Torque: 40 ft-lbs
Cooling System: Air
Fuel: Gasoline (unleaded - min. 87 octane)
Fuel Capacity: 4.7 gal (17.8 liter)
Battery: 12V, 35AH, 340 CCA
Charging System: Flywheel Alternator
Charging Output: 25 Amp DC (Regulated)
Manufacturer/Model: Dual Hydrostatic, Eaton Model 7, Each Wheel Independently Driven
Steering: Hand Lever Control, Individual Wheel
Forward Speed Control: Precision Friction Lock Lever, Cruise Control, with Neutral-Park Position
Parking Brake: Mechanical Pin Lock in Transmission Gear
Forward MPH (km/h): 0-7 MPH (0-11) Infinitely Variable
Neutral: Transaxle Release by Manual Dump Valve
PTO Shaft: Quick Disconnect Splined Shaft with Two (2) High-Speed U-Joints
Blade Drive Clutch and Brake: Manual Belt Tightener Clutch and Band Brake [Stops Blades within Five (5) Seconds of Disengagement]
Blower: 10.5 in. Diameter, Three-Blade Paddle Wheel
Max. Blower RPM: 4000 RPM
Grass Catcher Capacity: 93 Gal / 10.0 Bu / 352 L
Full Signal: Oscillating Vane Switch Mounted on Grass Delivery Spout Triggers Horn Signal
Powerfil®: Oscillating Delivery Spout Driven by 12 Volt Electric Gearmotor Spreads Material throughout Interior of Catcher @ 35 Cycles/Min
Recommended Cut Width: Collection:42 to 52 in. (107 to 132 cm), Side Discharge: 42 to 74 in (107 to 188 cm), Mulch: 42 to 52 in. (107 to 132 cm)
Cutting Height: 1.5 to 4 in. (4 to 10 cm) or 1.5 to 4.5 in. (4 to 11.5 cm) (DS52 & DS62 Belt Driven Decks Only)
Deck Suspension: Independent Torsion-Flex Frame with Caster Wheels and Counterweight Springs
Drive: 18 x 9.50-8 (Pneumatic 4-Ply, Standard) 18 x 10.50-10 (Pneumatic 4-Ply, Optional Low-Profile)
Tailwheel: 13 x 4.50-6 (Pneumatic 6-Ply, Standard Dual) 13 x 8.00-6 (Pneumatic 4-Ply, Optional Single)
Deck Caster: 8 x 3.00-4 (Semi-Pneumatic, All Decks Except DS52, DS62, DS74) 8 x 3.00-4 Pneumatic 4-Ply (Optional), All Decks Except DS52, DS62, DS74
LENGTH
WIDTH
HEIGHT
WEIGHT
| Released | Class | Model | Type | Model S/N Range | Manual P/N | Download |
|---|---|---|---|---|---|---|
| 06/25/2024 | Model-T | T27i | Operator's | 187255 - AND ON | 8000-58 | |
| 06/20/2024 | Model-T | T23 | Operator's | 187255 - AND ON | 8000-57 | |
| 04/08/2024 | Model-T | T23 | Parts | 187255 - AND ON | 8000-55 | |
| 04/08/2024 | Model-T | T27i | Parts | 187255 - AND ON | 8000-56 | |
| 02/13/2024 | Model-T | T27i | Parts | 180500 - 187254 | 8000-54 | |
| 02/08/2024 | Model-T | T23 | Parts | 179238 - 187254 | 8000-53 | |
| 01/20/2023 | Model-T | T27i | Operator's | 170586 - 187254 | 8000-52 | |
| 01/05/2023 | Model-T | T23 | Operator's | 170586 - 187254 | 8000-51 | |
| 10/10/2022 | Model-T | T27i | Parts | 170586 - 180499 | 8000-50 | |
| 10/06/2022 | Model-T | T23 | Parts | 170586 - 179237 | 8000-49 | |
| 05/25/2021 | Model-T | T23 | Operator's | 168447 - 170585 | 8000-44 | |
| 05/12/2021 | Model-T | T27i | Operator's | 168491 - 170585 | 8000-46 | |
| 04/30/2021 | Model-T | T27i | Parts | 168491 - 170585 | 8000-45 | |
| 04/26/2021 | Model-T | T23 | Parts | 168447 - 170585 | 8000-43 | |
| 06/24/2020 | Model-T | T23 | Operator's | 159238 - 168446 | 8000-41 | |
| 05/14/2020 | Model-T | T30i | Parts | 150226 - 159965 | 8000-42 | |
| 01/08/2020 | Model-T | T25i | Parts | 150266 - AND ON | 8000-40 | |
| 01/08/2020 | Model-T | T27i | Parts | 159728 - 168490 | 8000-37 | |
| 12/11/2019 | Model-T | T27i | Operator's | 159728 - 168490 | 8000-38 | |
| 11/08/2019 | Model-T | T23 | Parts | 152912 - 168446 | 8000-39 | |
| 04/24/2019 | Model-T | T30i | Operator's | 153891 - 159965 | 8000-35 | |
| 04/02/2019 | Model-T | T23 | Operator's | 152086 - 159237 | 8000-34 | |
| 02/13/2019 | Model-T | T25i | Operator's | 152131 - AND ON | 8000-36 | |
| 05/10/2018 | Model-T | T25i | Operator's | 148521 - 152130 | 8000-30 | |
| 04/12/2018 | Model-T | T23 | Parts | 149093 - 152911 | 8000-31 | |
| 02/14/2018 | Model-T | T25i | Parts | 148521 - 150265 | 8000-29 | |
| 10/05/2017 | Model-T | T30i | Operator's | 134970 - 153890 | 8000-28 | |
| 10/05/2017 | Model-T | T23 | Operator's | 134242 - 152085 | 8000-27 | |
| 01/12/2017 | Model-T | T23 | Parts | 134242 - 149092 | 8000-25 | |
| 12/15/2016 | Model-T | T25i | Operator's | 134121 - 148520 | 8000-24 | |
| 01/07/2016 | Model-T | T30i | Operator's | 124884 - 124969 | 8000-22 | |
| 09/11/2015 | Model-T | T23 | Operator's | 124812 - 134241 | 8000-21 | |
| 08/31/2015 | Model-T | T23 | Parts | 124812 - 134241 | 8000-20 | |
| 05/01/2015 | Model-T | T25i | Parts | 134121 - 148520 | 8000-23 | |
| 11/20/2013 | Model-T | T25i | Operator's | 125598 -134120 | 8000-17 | |
| 11/18/2013 | Model-T | T25i | Parts | 125598 -134120 | 8000-18 | |
| 10/07/2013 | Model-T | T30i | Parts | 124884 - 150225i | 8000-19 | |
| 08/09/2009 | Model-T | MT, MTL | Operator's | 103844 - 125597 | 8000-16 | |
| 04/01/2009 | Model-T | MT, MTL | Parts | 100103 - 125597 | 8000-15 | |
| 04/01/2007 | Model-T | MT, MTL | Operator's | 92089 - 103843 | 8000-14 | |
| 04/01/2007 | Model-T | MT, MTL | Parts | 85932 - 100102 | 8000-13 | |
| 11/15/2005 | Model-T | MT, MTL | Operator's | 75988 - 92088 | 8000-11 | |
| 09/15/2005 | Model-T | MT, MTL | Parts | 75988 - 85931 | 8000-12 | |
| 04/01/2004 | Model-T | MT, MTL | Parts | 66327 - 75987 | 8000-10 | |
| 01/01/2004 | Model-T | MT, MTL | Operator's | 71497 - 75987 | 8000-9 | |
| 01/31/2003 | Model-T | MT, MTL | Parts | 54651 - 66326 | 8000-7 | |
| 06/01/2002 | Model-T | MT, MTL | Operator's | 49592 - 71496 | 8000-6 | |
| 03/29/2000 | Model-T | MT, MTL | Parts | 37480 - 54650 | 8000-4 | |
| 08/14/1998 | Model-T | MT, MTL | Operator's | 21329 - 49591 | 8000-1 | |
| 05/22/1997 | Model-T | MT, MTL | Parts | 21329 - 37479 | 8000-2 | |
| 03/01/1993 | Model-T | MT, MTL | Parts | 12717 - 21328 | 8895-1 | |
| 03/01/1992 | Model-T | MT, MTL | Operator's | 12717 - 21328 | 7895 |
