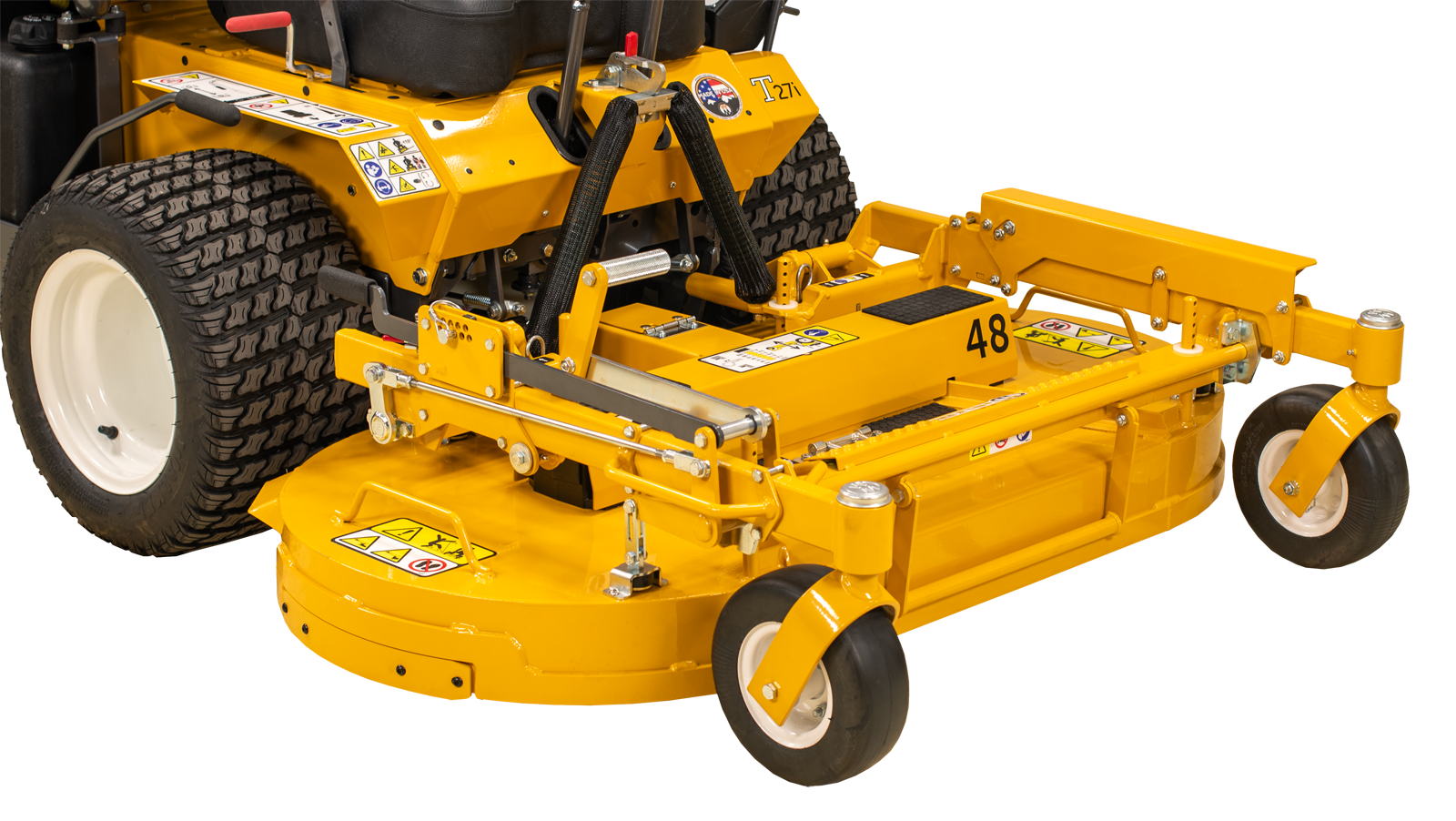

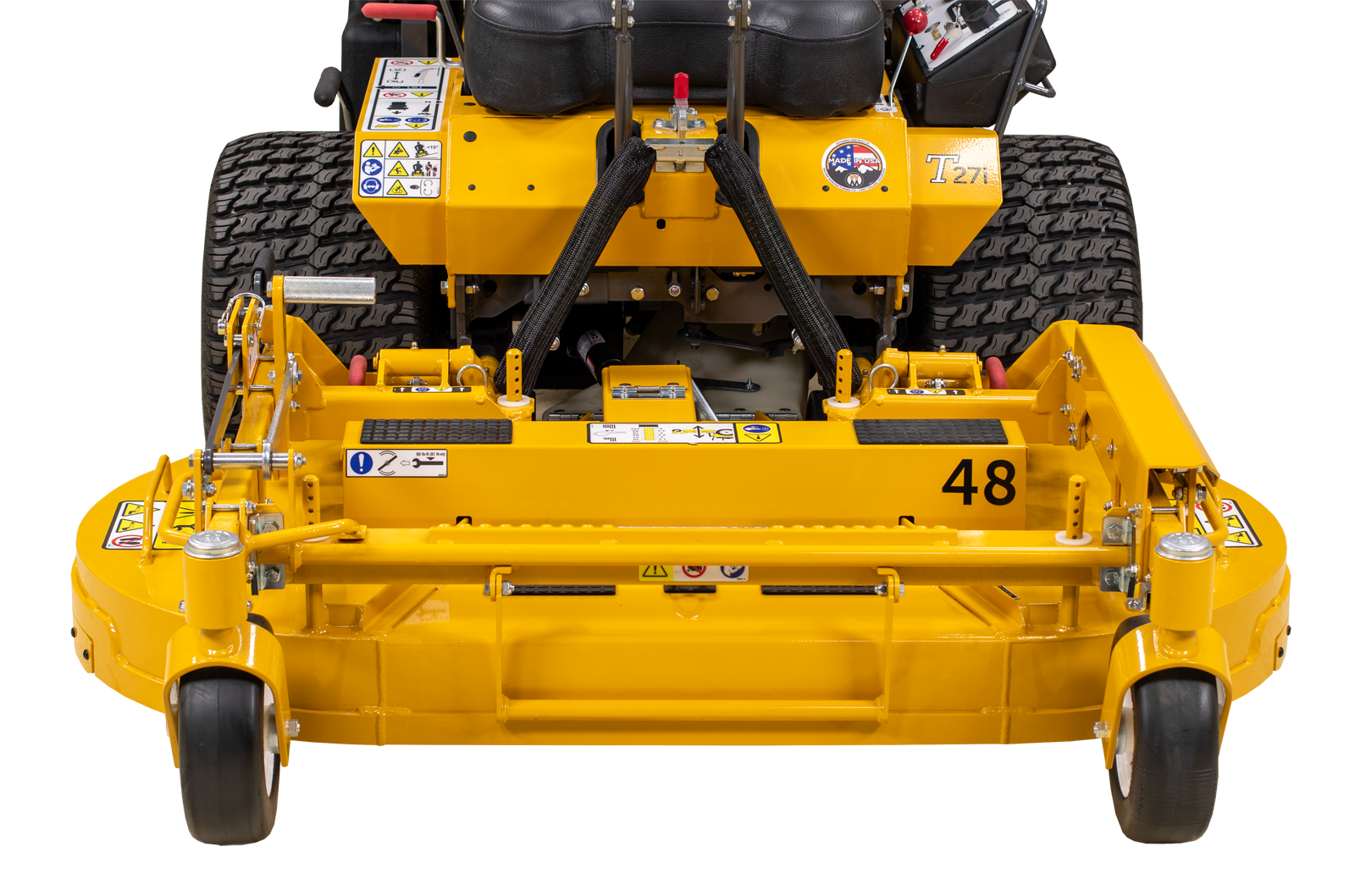

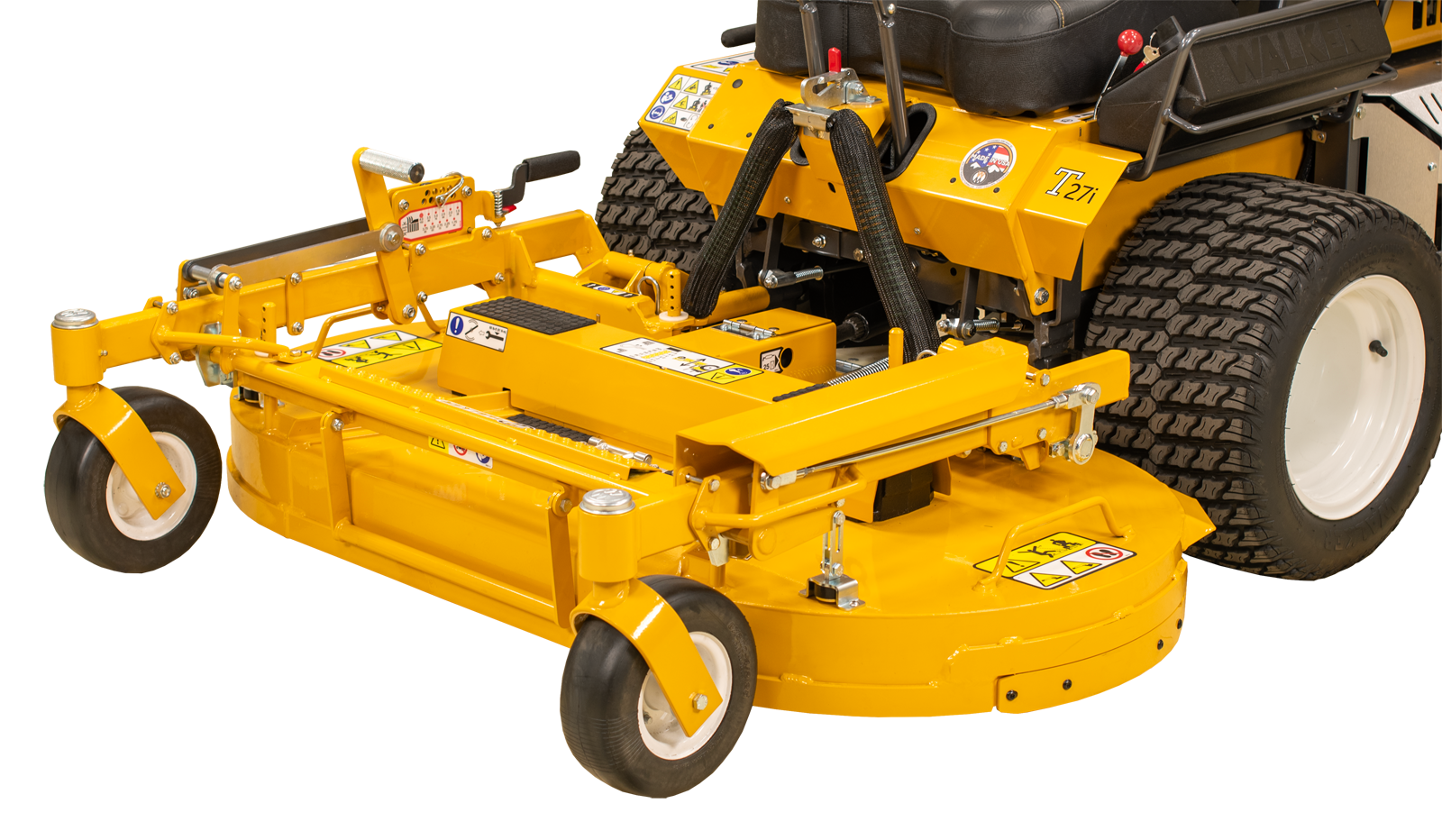

Foot Pedal Deck Height Adjuster

The Foot Pedal Deck Height Adjuster installs directly onto the Walker mowing deck*. This dealer-installed feature allows the operator to easily adjust the deck cutting height in ¼” increments that range from 1-½” to 4” while seated and using a single foot pedal.

Type: Option
Parts:
A53 - C42, C42R, C42RV, M42*
A54 - C48, C48R, C48RV, M48, C52R, C52RV, M52*

Application: 1/4 in height adjustments from operator seat

*Compatibility*
A53: DC42-2, DM42-2 S/N 221965 and on
DC42R-2, DC42RV-2 S/N 222489 and on
A54: DC48-2, DM48-2, DC48R-2, DC48RV-2, DC52R-2, DM52-2 S/N 220949 and on
DC52RV-2 S/N 221042 and on

NOTE:  MC19, MC19i, MD21d, MT23, and MT27i prior to S/N 2024-188954 are not compatible with the A53 and A54 Deck Height Adjusters.
